Foreword
Thank you very much Zhang Aunt, this time you can get Huawei's glory 5C Netcom high-qualified version of the public survey qualifications. I also applied for a number of tests before, and I haven’t been in the game. I have quite complained that I almost lost confidence in the test. However, for the sake of gold coins (in fact, it was for a lucky draw, although it was not done at one time), it has been trying hard to write originals and it was finally tested in this round. So you value friends, continue to work hard to write originals, your efforts Xiao Bian will see.
First, out of the box and appearance
Since receiving a text message from Aunt Zhang, she has been waiting for delivery. The next day to see Zhang Aunt, found that has been issued by SF Express, but unfortunately took the pieces of land transport, the road took a full three days to get it.
The express value on the express package arrived.
The back of the phone package shows simple parameters. However, I want to spit, the network license is "XX-XX-XX-XX".
See here, a little surprise. The original is a high version, the color is also very good.
Family portrait: manual, warranty card, card pin, charging head, data cable, mobile phone. Did not give away headphones.
The mobile phone does not support fast charging, the charging head is 5V/1A output, 100-240V wide voltage.
The front and back of the phone. The front of the phone is a 5.2-inch 1080P full-fit LIPS screen. The back of the phone adopts all-metal lamination, while the back adopts a three-stage design. The top and bottom are equipped with dual antennas, and the signal is better.
The camera is prominent. If the protective cover is installed, it just solves this problem.
The bottom of the phone, microphone and data charging interface. The interface still uses mini usb and does not use USB type-c.
Cato.
Cato is a single card slot dual card slot and or card slot, which supports two nano phone cards, or a nano phone card + a MicroSD (TF) card.
The 3.5mm headphone jack on the top of the phone.
The other two phones currently in use, iPhone5s and P7 Telecom.
Second, mobile network
1, glory 5C full Netcom baseband profile
According to Huawei's official introduction, Glory Play 5C Netcom Edition uses a Balong communications baseband independently developed by Huawei. The most important chip in mobile phones is equipped with a self-developed 16-nanometer full-mode chip, the Unicorn 650, fully integrated with 16nm. The advanced process of the process and the self-developed CDMA baseband technology are more obvious than the plug-in mode, and the use is smoother and lasts longer.
From the above analysis, it can be seen that the balong baseband of Qilin 650 has integrated Huawei's own CDMA baseband and adopts the TSMC's 16nm FinFET plus technology. Huawei friends familiar with mobile phones can all know that Huawei's previous telecommunications mobile phones or all Netcom mobile phones, are plugged in VIA's 55-nanometer CDMA baseband, such as P7, P8, glory 7 and other mobile phone telecommunications or full Netcom version. However, these mobile phones have the disadvantages of large heat output and fast power consumption. The culprit is precisely this old-fashioned plug-in baseband.
VIA (Weiyi Dentsu) 55nm CBP8.2D CDMA baseband (picture from network)
For CDMA baseband, Huawei, who believes that it has strong research and development capabilities, is not a problem at all. The key is patent authorization. Since CDMA related patents are in the hands of Qualcomm and VIA, this is a threshold that Huawei cannot bypass. Now Kirin 650 has integrated the cdma baseband, which is a huge advantage for Huawei's balong baseband. It is no longer necessary to plug in VIA's ancestral baseband. For the mobile phone itself, one of the benefits of process advancement and baseband integration is the reduction in calorific value and increased battery life.
Kirin 650 baseband related parameters:
Support full Netcom (mobile, telecommunications, Unicom 4G/3G/2G);
Support VoLTE;
Support carrier aggregation CA;
Supports up to Cat.6 (FDD-LTE up to 300Mpb, TD-LTE up to 220Mbps);
Chip level recognition pseudo base station.
2, carrier aggregation CA
The advantage of carrier aggregation is that the network download speed is greatly accelerated. Glory 5C supports Cat. 6 (FDD-LTE up to 300Mpb and TD-LTE up to 220Mbps). However, because the local carrier aggregation does not seem to be deployed too much, it is not stable, and it only happens occasionally, so it cannot be tested.
The status bar icon has a 4G+ logo.
3, support for all Netcom, dual card blind insertion, support for soft switching main deputy card
The glory 5C card slot is a single card slot dual cardo design, that is, Nano card slot + and or card slot. In simple terms, you can store two Nano phone cards, or a Nano phone and a MicroSD (TF) memory card. In fact, individuals have always been disgusted with the card slot, why did they always force users to choose one? Since it is a dual-card dual standby mobile phone, put two mobile phone cards, and then put a memory card is not a good choice?
Glory 5C supports dual-card blind insertion. The main card can be set to be mobile telecommunications and Unicom 4G, and vice cards can only be set to be mobile telecommunications and Unicom 2G. Note that two telecom cards are not supported. For the Glory 7 Netcom version mentioned earlier, due to the cdma baseband plug-in, when the main card is set to be mobile/unicom 4G or 3G, the telecommunication card can support 3G (cdma1x & EVDO) as a secondary card.
Glory 5C main and auxiliary cards support soft switching, switching speed is very fast, about 13 seconds or so all the switch is completed (there are two complete mobile phone card signal and data logo). The test uses a China Telecom card + China Mobile card and two mobile cards. The soft-switching time of the main and sub cards is all around 13 seconds.
Dual card management interface.
Dual card switching speed is very fast, and switching is completed in about 13 seconds.
4. Support for Network Frequency <br>The frequency bands supported by Huawei official 5C Netcom are as follows:
TD-LTE: B38/B39/B40/B41;
LTE FDD: B1/B3;
TD-SCDMA: B34/B39;
WCDMA: B1/B8;
CDMA: BC0;
GSM: B2/B3/B8
The above formats include 2G/3G/4G of the three largest domestic carriers. Support for common frequency bands, such as commonly used WCDMA B1 (2100Mhz), B8 (900Mhz), FDD-LTE B1 (2100Mhz), B3 (1800Mhz). At present, both China Telecom and China Unicom's 4G FDD-LTE adopt B1 and B3. Therefore, 5C Netcom can be used at home and abroad. For friends who like to travel abroad, they finally do not have to worry about the problem of mobile phone systems, and they will basically not appear to use local 4G cards abroad, but they can only use the 2G network, or simply have no signal.
Of course, for glory 5C support for the band, personally think that 4G FDD-LTE lacks support for Band5 (800Mhz) and Band8 (900Mhz). In June 2016, the Ministry of Industry and Information Technology issued 193 and 194 documents, and approved China Telecom and China Unicom to deploy 4G networks in the low-frequency bands of 800M and 900M respectively. Low-band signals have strong penetration and wide coverage. It is believed that in the future, China Telecom and China Unicom will use 800Mhz and 900Mhz to cover 4G in rural areas or mountains. The glory 5C lacks support for the two frequency bands, can not be said to be a pity.
5, support VoLTE
VoLTE: Voice over LTE, that is, data and voice services carried over 4G, based entirely on IP technology, with shorter on-time and higher quality, more natural voice and video calls.
At present, only China Mobile is used for commercial VoLTE in China. The first thing to do is to use a mobile SMS or a client to open the VoLTE function.
The mobile in my area is promoting VoLTE on a large scale. The launch of VoLTE in July will award a 10 yuan call. If a voice call occurs in a VoLTE environment, 100 yuan will be awarded. The voice and video that took place in the VoLTE environment in July will be free! The intensity can be very great, and the movement is really rich and powerful. From August 1, VoLTE voice is charged the same as previous voice, video is 1 yuan/minute. For this welfare issued by mobile, as a value friend, can there be no argument? Agitate the friends around and open the VoLTE function through the mobile client. The mobile rewards 10 yuan to arrive. Then insert the mobile phone card into VoLTE-enabled mobile phones (such as the glory 5C, iPhone6/6S, etc.) to dial 10086 (note that the 4G logo will be displayed during the call), and the client will receive 100 yuan for the call and instantly lose 110 yuan.
Just finished writing the evaluation report ready to submit, receive text messages from mobile, VoLTE voice and video free extended to the end of the year.
Mobile push volte really under the blood. Students who have opened volte will quickly continue to move the wool.
Second, you need to set it up inside your phone. If you insert a dual card, you must set the mobile card to 4G card and default data. Then in Settings - More - Mobile Network - Open VoLTE call. The status bar will show the HD symbol.
For the VoLTE experience, since the individual opened after 5C, the surrounding mobile phones do not support VoLTE video calls, so experience is VoLTE voice.
The main advantages of VoLTE are:
Advantage 1: When making a call, the data is not dropped. Mobile TD-LTE uses the CSFB technology, which is usually standby on 4G networks and falls back to 2G GSM networks during calls. One of the more obvious places is that, when making a call, the mobile 4G logo disappears, falls back to 2G, and mobile data drops.
In this regard, Unicom said that our 3G WCDMA has long been realized. The Telecommunication Party said that we are 4G+2G dual standby and we can always use the Internet while making a call. Mobile Party
No VoLTE was opened, the call was dropped to 2G, and the data was dropped.
The VoLTE voice dials 10086. Note that the 4G network is normal and the HD is displayed at the same time.
While calling 10086, visit Zhang Aunt.
Advantage 2: Fast connection. If the other party supports VoLTE voice, it can be connected in about 3 seconds. If it is not supported, the connection speed in peacetime is the same.
Three advantages: good quality. The voice is clear, honest and no noise.
6, there are dual-communication card, no single card telecommunications.
If a dual card is inserted, a telecom card is dual card dual standby dual-pass, and no telecom card dual card dual standby single pass. If the dual-pass is supported, the two mobile phone cards do not interfere with the incoming and outgoing calls. If only the single-way connection is supported, one of the cards will be in the case of a call, and the other card will not be able to make and receive calls if it just happens to dial another one. Card, it will prompt unable to connect.
Using Card 1 Telecom, dialing Card 2 moves and can be connected.
Insert two mobile cards, card 1 mobile card dial card 2 mobile card, you can not connect. At the same time, the status bar 2 has a more funnel sign indicating that it cannot be used.
7. Simultaneously accessing the Internet and making calls. For dual-card dual-standby users, there is often such a demand that one card is used to access the Internet and the other card is used to make calls. For example, we have 60 yuan in this telecommunications package to fight the king, every month 1000 minutes domestic calls, 6G intra-provincial traffic, and at the same time I have used mobile cards for many years, mainly used to make calls. Then you can set up a 4G primary card for Internet access in the network and a secondary card for mobile to make calls.
But now to test is the case of dual-card dual standby, while surfing the Internet and making calls. Before many dual-card dual standby mobile phones, the data and calls of the two cards were mutually exclusive, that is, one card was in the case of a call, and the other card was unable to access the Internet. What is the performance of the Unicorn 650?
There are mainly the following situations to test:
Situation 1: The mobile card accesses the Internet and makes calls.
For this situation, only VoLTE can be implemented, which is described above.
Situation 2: The telecommunications card accesses the Internet and makes calls.
At present, the SVLTE dual standby mode adopted by the telecommunications 4G here is 4G and 2G simultaneous dual standby, 4G is responsible for data, 2G is responsible for voice, and does not interfere with each other. For this situation, it is easy to access the Internet and make calls at the same time.
Status bar, Telecom 4G+2G standby. When dialing 10000, 4G data is normal.
In case 3, when the telecommunication card is online, the mobile card makes a phone call.
In the dual card management, if the 4G/3G card is set as a telecommunication card, the default mobile data is selected as a telecommunication card. When a mobile card is used to make a call, the telecommunication card data will fall back from 3G to 4G and can be used to access the Internet.
If the 4G/3G card is set as a mobile card and the default data card is a telecommunication card, the mobile 3G standby is used, and the telecommunication 2G data stand alone. When the mobile card is used to make a call, the telecommunication 2G data can be accessed normally.
In the fourth case, the mobile card is connected to the Internet while the telecommunication card is calling.
If the 4G/3G card is set as a mobile card and the default data card is a mobile card, the telecommunication 2G standby and mobile 4G standby. Then use the telecommunication card to make a call while the mobile 4G can access the Internet.
If the 4G/3G card is set as a telecommunication card, the default data card is a mobile card, and telecommunications and mobile 2G standby. When using a telecommunication card to make a call, the mobile 2G can normally access the Internet.
To sum up, in the case of dual-card dual standby, the glory 5C can achieve simultaneous Internet access and make calls, but also can make one card to make calls while the other card is online.
8. Accelerate the downloading of two cards at the same time. <br>Because of the glory 7 full Netcom version, VIA's CDMA baseband is additionally plugged in, and mobile cards (4G/3G) + telecom cards (3G) or Unicom cards (4G/3G) + telecom cards are supported. (3G) Standby. If you download a file larger than 20M, you can turn on both the telecommunication card and the mobile card (Unicom card) to accelerate the download.
After testing, Glory 5C does not support this feature. The reason is that the baseband of Glory 5C integrates cdma, and does not use cdma baseband alone. The cdma baseband of Glory 7 Netcom plug-in is solely responsible for cdma's 2G/3G.
9, identify the pseudo base station
The harm of the pseudo base station is self-evident, mobile and Unicom's users should be the biggest victims, while the telecommunication CDMA users will not receive the SMS sent by the pseudo base station. Although mobile has been promoting the use of 4G mobile cards to avoid pseudo base stations, as long as the network falls back to 2G GSM, it may receive spam messages from pseudo base stations.
The iPhone 5s uses a mobile 4G card and receives pseudo-base station messages at high speed in early June. Pseudo base station features, full signal, no data link.
For Glory 5C, official propaganda can identify pseudo base stations from the ground up and eliminate pseudo base station messages. Of course, at present, the country is attacking the pseudo-base station at high pressure, so this function cannot be tested during the trial period of 5C, and of course, pseudo-base station messages have not been received.
Third, the Emui4.0 system
1, system upgrade

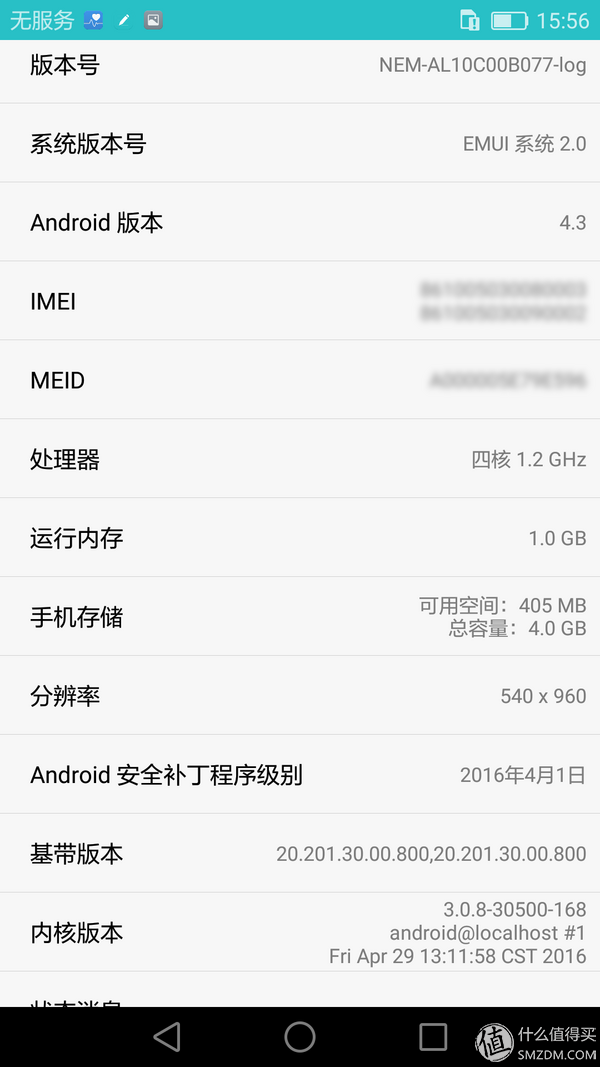

After the phone got his hands on, he found the settings - there was a problem with some of the information in the phone.
Many of the above information, such as emui2.0, processor, running memory, resolution, Android version and other information display error. The checked version is the b077-log test version. Unfortunately, clicking on the OTA cannot be upgraded.
No firmware 5c found on emui.com. After looking for Huawei's sales, it is reported that there is no 5c firmware available for download. Finally at the Huawei Pollen Forum, the B110 firmware shared by others was found. After some toss, it was finally upgraded.
After upgrading to B110, it is displayed as EMUI4.1, Android6.0, and memory 3G. The processor is Hass 650 with a resolution of.
In the afternoon of July 25th, I received a phone call from a Huawei Huawei glory employee to explain the system's problems. The back-end database was processed and it was announced that I could click on the OTA upgrade. Think of the phone on the same day, the system tossed one night
2, Emui3.1 VS Emui4.1
At present, Huawei P7 Telecom is still in use, and the update has stopped since P7 was upgraded to B851. The system stopped at emui3.1, Android5.1.1. Try to compare and evaluate the 5C system with P7. The following are all 5C (Emui4.1) under P7 (Emui3.1).
P7 (Emui3.1)
Glory 5c (Emui4.1).
The standby interface of the system is not much different between the two. Because P7 has been replaced by the theme, the weather shows something special. For virtual keys, some people like to hate it. Huawei has launched a finger tip before it can install a film instead of a virtual key. In the hands of the P7 installed a copy of the consonance of the cottage, can also be used. As for the glory 5C, no consonance was found in the system and it is estimated that it does not support it.
The following changes have been made to the system setup:
1,3.1 There are common settings and all settings, 4.1 cancel the common settings, all integrated together.
2. The 3.1 international roaming setting of the network part was changed to 4.1 dual card management, which is more intuitive.
3, part of the content moved to the advanced settings.
4, intelligent assistance alone into a folded menu.
dial:
For the dialing interface, the difference between the two is as follows:
1, emui4.1 has added three tabs at the top of all calls, missed calls, and unfamiliar numbers. This is similar to IOS.
2. The rightmost tab on the top changes from information to yellow pages. This person is very dissatisfied. Before you can quickly enter text messages from the dial-up interface, clean. Now for yellow pages, it's advertising.
3,3.1 The online identification provider for numbers is TouchPal, and 4.1 is changed to the numbers Knowtong and Tencent.
SMS:
4.1 Compared with 4.1 SMS, the SMS in the notification message has been further improved. According to the number identification service, many new services have been added.
Mobile network optimization:
Mobile network settings are much the same. The main difference is in the Link+. In addition to the two common WLan+, Emui4.1 added Signal+ and Roaming+, the legendary high-speed rail model and the overseas model.
Status Bar:
When the status bar of emui4.1 is pulled down, a smart judgment is made, a notice display page is displayed, and if there is no notice, the switch page is displayed. At the same time, the power percentage display adds the selection displayed in the battery icon.
Self-start:
For rights management, due to the improvement of Android6.0, the relative emui4.1 also made a great improvement on self-start. Due to the openness of Android and the special environment in China, many APPs are very mobile, and some APPs will wake up from each other. Open wlan, bright screen, open mobile network, etc. may be automatically wake up, etc. 4.1 Self-starting of the system can be prohibited These apps wake up.
Student mode:
Added student mode in advanced settings.
After setting the parental password, after opening the student mode, you can set the restricted use application and time.
Some other changes:
1, after the screenshot, click on the menu's scroll screenshots, you can achieve scrolling screenshots.
2, added a sports and healthy app.
3, weather service providers replaced accuweather.
fingerprint:
The fingerprint type fingerprint used by Glory 5c still has a fingerprint. Located under the camera.
Many features do not actually have fingerprints. Any finger can be used.
Without fingerprint information, any finger can operate functions:
1, when shooting, long press the fingerprint to take pictures.
2, long press fingerprint to answer the phone.
3, long press the fingerprint to pause the alarm bell.
4, slide down to display the notification panel, double-click the empty notification, slide up and collapse the panel.
5, when browsing photos, swipe left or right to flip through the photos.
After setting the lock screen password, you can create a new fingerprint and you can enter up to five fingerprints. Fingerprinting is very fast and can be fully recognized after about 4 presses. After the fingerprint entry is complete, unlocking the screen is very fast. In the state of blank screen, it can be unlocked in about 1 second.
Second, it can also be used for security cabinets, application locks, and Huawei account and Alipay quick payment.
Fourth, performance
1, performance parameters
The comparison of this evaluation is based on the P7 telecommunication version in hand. The performance related parameters of the two are as follows:
From a performance comparison point of view, the 5C CPU was changed to use TSMC's 16nm process, the GPU was partially upgraded to Mail-T830mp2, and the memory was upgraded to 3G.
2. Comparison of running points This time, we used the security Bunny and GeekBench3 as comparison. Each running software runs three times and average points are used. Each time the mobile phone is restarted, the results are as follows:
An Bunny ran points, 5C total score 53181, P7 33651, 5C performance increased by 58% than P7, 3D performance increased by more than 3 times.
From the perspective of GeekBench3's running points, 5C single-core performance increased by about 55% compared to P7, and multi-core increased by 123%.
In two years, Huawei's Hass processor has made great progress. As a comparative evaluation of P7, 2014 was positioned as a high-end Huawei model.

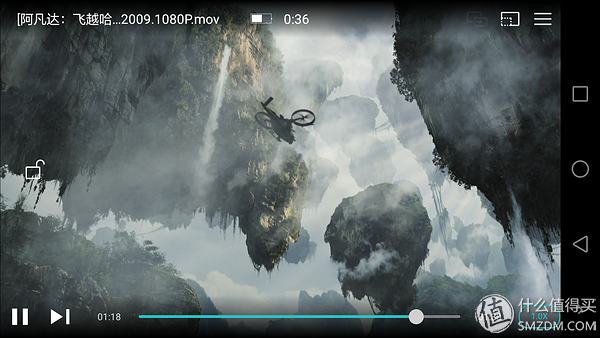

3, 1080P and 4K video test
The three videos used in this test were two 1080P and one 4K. The play was smooth and there was no Caton.
For the performance part, glory 5C is enough if it is the usual Internet access, video, etc. Since I don't play games, I didn't evaluate the game.
Fifth, the screen
Glory 5C uses a 5.2-inch 1080P resolution LIPS full-fit screen. Before many thousands of dollars are using 5 inch / 5.2 inch 720P screen, for the glory of 5C 1080P resolution personally appreciate. From the display effect, this screen is colorful and well restored. With the hands of the iPhone5s (4.7 inches, because the screen is broken, replaced the cottage screen, for comparison purposes only), P7 Telecom Edition (5 inches), glory 5C for comparison.
The following shots were all of the highest brightness, all black environment (taken most late night), the same picture. From top to bottom, in order to glory 5C, P7, iPhone5s.
Specific display effect, 5C scenery is bright and the contrast is slightly higher.
Six, battery and battery life
The glory 5C's battery is 3000mAH, thanks to the progress of baseband integrated CDMA and 16nm process, the glory 5C standby time is very good, and can completely cope with the use of one day.
Because 5C does not support fast charging, the charging voltage and current of the mobile phone is 5V/1A. For a 3000mAH battery, the charging speed is really slow. This test uses the P7 telecom version contrast, P7 battery is 2500mAH, also does not support fast charge. After the two mobile phones are switched off and charged at the same time after the automatic shutdown, the P7 telecommunications version is fully charged in about three hours (189 minutes), and the glory 5c is fully charged in three hours and 45 minutes (225 minutes). The long charging time, no quick charge, had to say it was a pity.
Seven, take pictures
1, parameters
Glory 5C rear camera is 13 million pixels, a constant f2.0 aperture, physical focal length of 3.8mm, the equivalent 35mm film focal length of 27mm, a wide-angle lens, a maximum resolution of, video resolution of. The front camera has 8 million pixels, a constant f2.0 aperture, a physical focal length of 2.8mm, an equivalent 35mm film focal length of 27mm, a maximum resolution of, and a video resolution of.
I checked, did not find the glos 5C cmos, camera provider information.
2, camera system
The main interface of the camera system, the top three buttons for the flash, color mode, before and after the camera switch. At the bottom are photos, pictures, photo/video switching. In addition to clicking the middle circle, you can also click the volume button, or any finger can press the fingerprint behind it. In the main interface, slide left as the mode, and slide right as the setting.
Swipe to the left for mode selection, mode more abundant.
Swipe right to set. Among them, there is a screen shot snap function, that is, when the screen is blanked out, you can double-click the volume down button to take a picture, which is equivalent to blind shot.
On the lock screen, swipe up from the bottom right to enter the camera interface.
Professional photo mode, you can set the metering mode, ISO, shutter, exposure compensation, focus mode, white balance and so on. As the aperture is fixed f2.0, no adjustment can be made.
3, samples
Eight, summary
With the trial of a few days of mobile phones, there is some understanding of this phone glory 5C. For me personally, compared to the thousands of machines that we purchased before, such as glory 3C, 4X, etc., the current domestic advancement of the thousand-yuan machine is not much. Previously high-end models of metal fuselage, 1080P, Netcom, fingerprints, VoLTE, etc. have been decentralized to thousands of machines. With Huawei's integration of the cdma baseband, bid farewell to Via's ancestral CDMA baseband. Both of Huawei's HiSilicon and balong's baseband are huge benefits. We believe Huawei Telecom or Netcom will use its own integrated baseband in the future.
For the glory 5C this phone, full Netcom, fingerprint, VoLTE, 1080P are its highlights. For telecom parties or friends who often go abroad, this phone can fully meet your needs. 1,000 yuan, but also a bicycle?
advantage:
1. Full support for Netcom and VoLTE support.
2, support for fingerprints, it is also very practical.
3, the screen shows good results, 1080P resolution.
4, good standby time, can meet the use of the day.
5, performance can meet most of the needs.
insufficient:
1, does not support FDD-LTE band5 and band8.
2, add advertising.
3, Double-click to unlock, Knock Knock screenshots, Consonance and other features missing, there is no NFC.
4, rear camera prominent (forced death Virgo ah).
5, does not support fast charging, charging time is longer.
6, and or slot, choose one.
Finally, thank you very much and Aunt Zhang Huawei's support, thank you for browsing (see this, it should be a waste of a lot of traffic). Since the first time to write all the measurements and the experience of the reasons there are just a few days before the fall of a hundred micro camera 135L are relying on to make do, the evaluation must have many deficiencies, we welcome the discussion correct me, but do not welcome ginseng cock.
